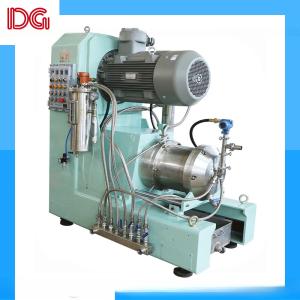

18l Turbo Bead Mill Machine Ceramic Structure Horizontal Sand Mill Machine

  • 1
  • 2

Brand Name : DEGOLD

Model Number : ZM18SB5511-T

Certification : CE

Place of Origin : Chongqing, China

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 set months

Delivery Time : 5-8 work days

Packaging Details : Non fumigation wood packaging

Grinding chamber volume : 18L

Batch size : 500-1800L/h

Main motor power : 37kw

Inner grinding chamber material : ceramic

Grinding discs material : ceramic

Raw materials transfer pump : gear pump

Contact Now

18l Series Turbo Bead Mill Machine Ceramic Structure

Principle of Operation: The rotary grinding shaft drives all grinding mediums inside the grinding chamber. The grinding mediums passes the powers to the materials to reduce the particle size. Gap separator inside the horizontal bead mills separates the products and the grinding mediums. They are suitable for different viscosities formulations.

Different materials inside the horizontal bead mills can be choosen, such as SS304, hard alloy, mold steel, polyurethane, tungsten carbide, ceramic etc.

Agrochemicals Pesticide, Herbicide, Fertilizer, SC
Ceramic Industry Ceramic inks, Ceramic pigments
Printing Inks Inkjet, Screen printing inks, Flexo printing inks
Pigments and Dyes Pigment, Titanium dioxide
Paint and Coating Construction Paint, Road Marking Paint, Wood Paint, Varnish, Marine Paint, Dispersion Paint, Automotive Paint, Coil Coating, Top Coat, Clear Coat
Minerals Calcium carbonate, Pharmaceuticals, Cosmetics

ZM-T Series:

Type ZM8-T ZM18-T ZM25-T ZM60-T
Grinding chamber volume (l) 8 18 25 60
Batch size (l) 100-1500 300-2500 400-3000 500-6000
Drive (kW) 18.5-22 37-45 45-55 75-90
Length (mm) 1400 1800 1900 2300
Width (mm) 800 1050 1050 1250
Height (mm) 1700 1900 1900 2150
Weight (kg) 900 1800 2000 3600
Note: Technical data are different if there are some customized constructions.
